8-channel high-end SSD product

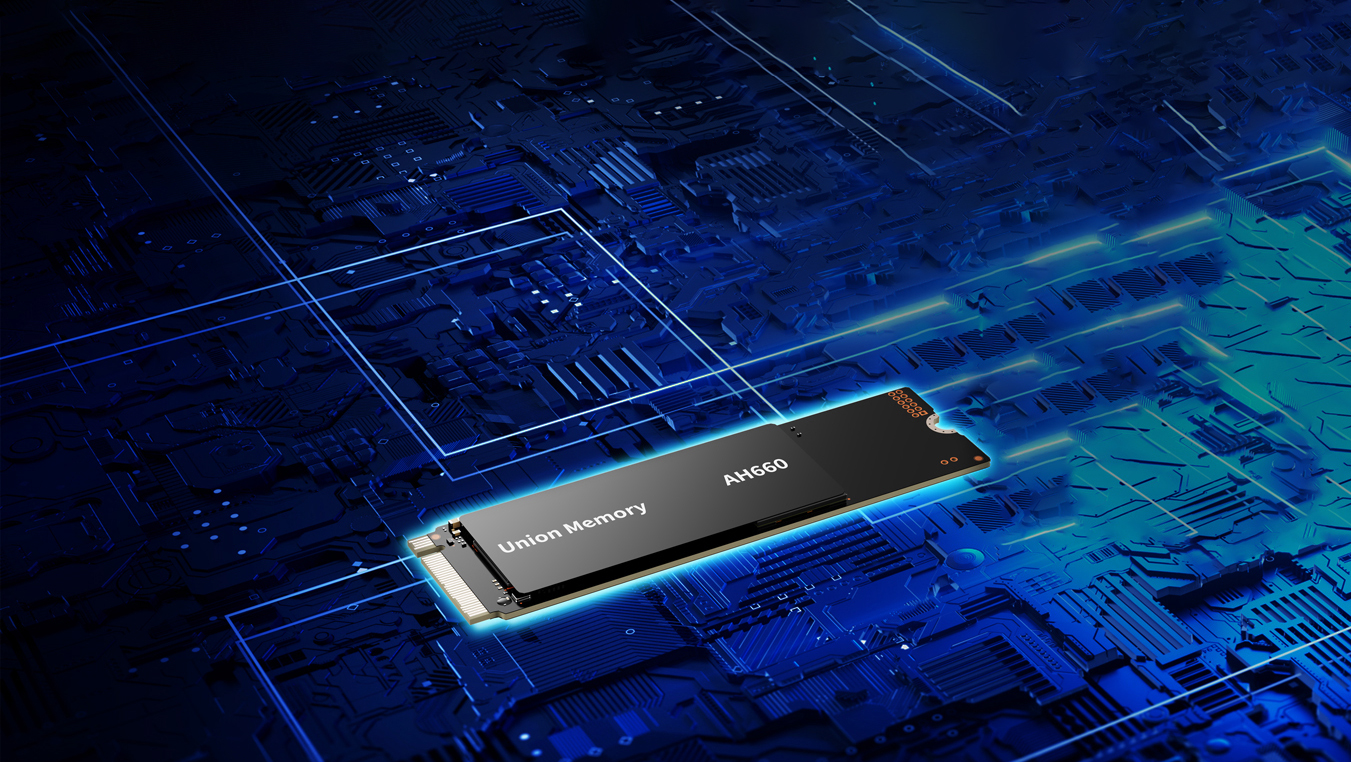

Next-gen SM2264 controller
Customization services for multi-mode, multi-scenario optimization
Support high-reliability features including E2E path protection and 2WL RAID
Up to 7,100 MB/s sequential read* and 5,500 MB/s sequential write*

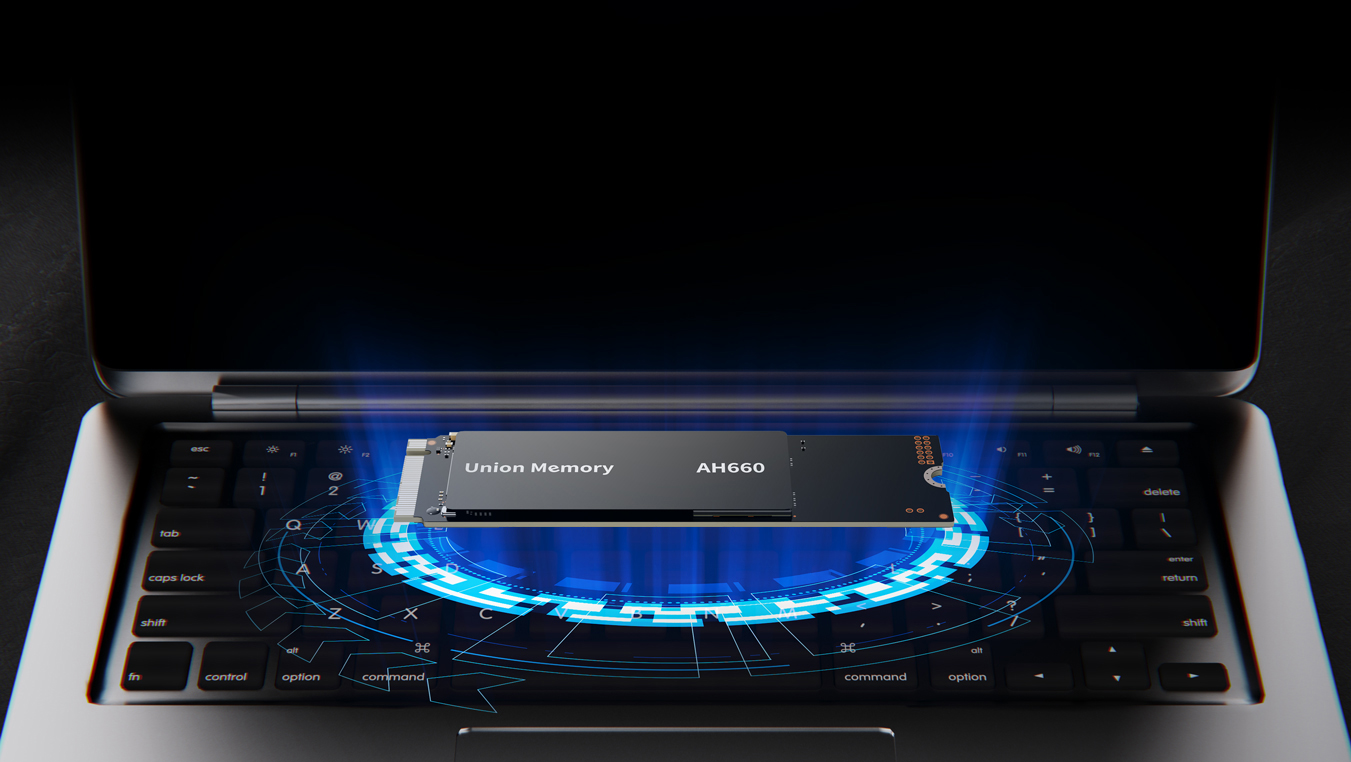

Smoother application performance and faster game loading
* For 1TB capacity. See Specifications & Parameters for details.

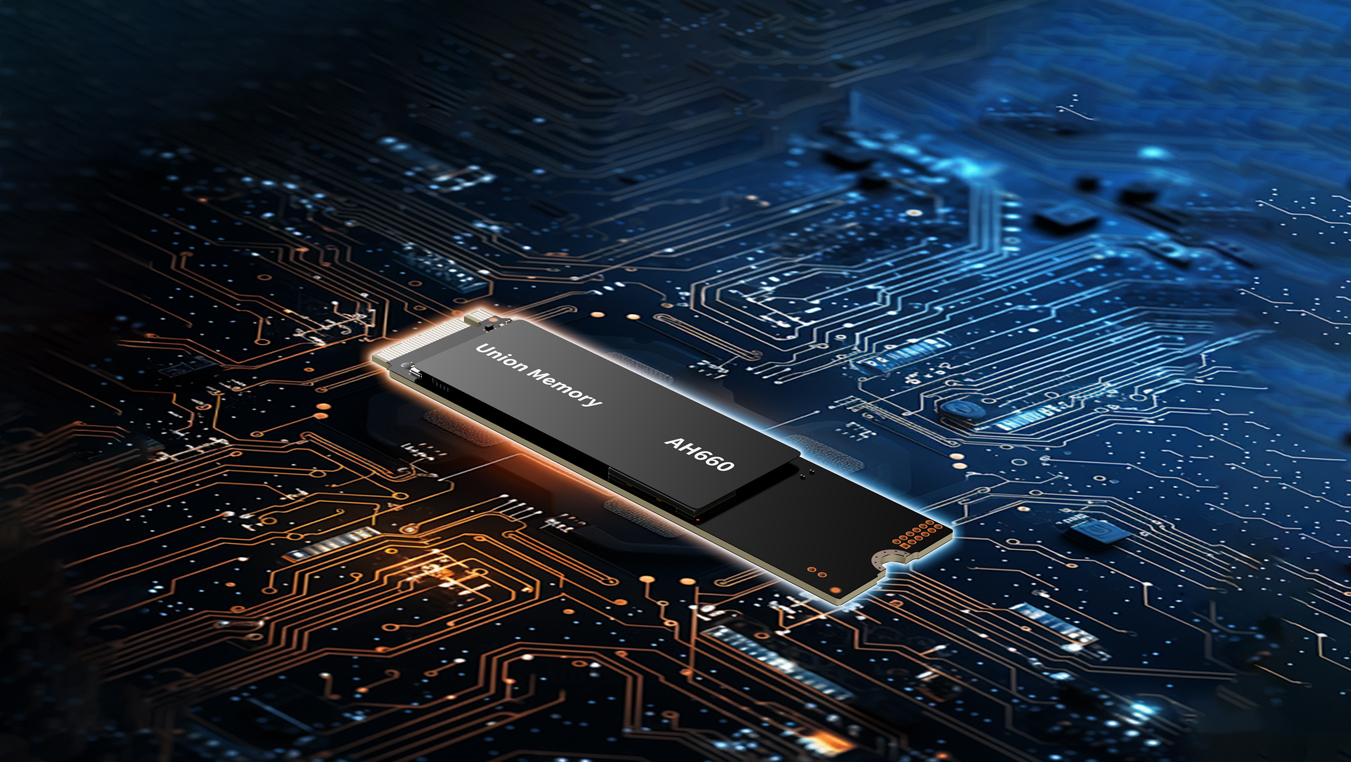

Support E2E path protection, L2 PLP, static/dynamic SLC write, 2WL RAID, and other reliability algorithms and features to deliver sustained reliable performance

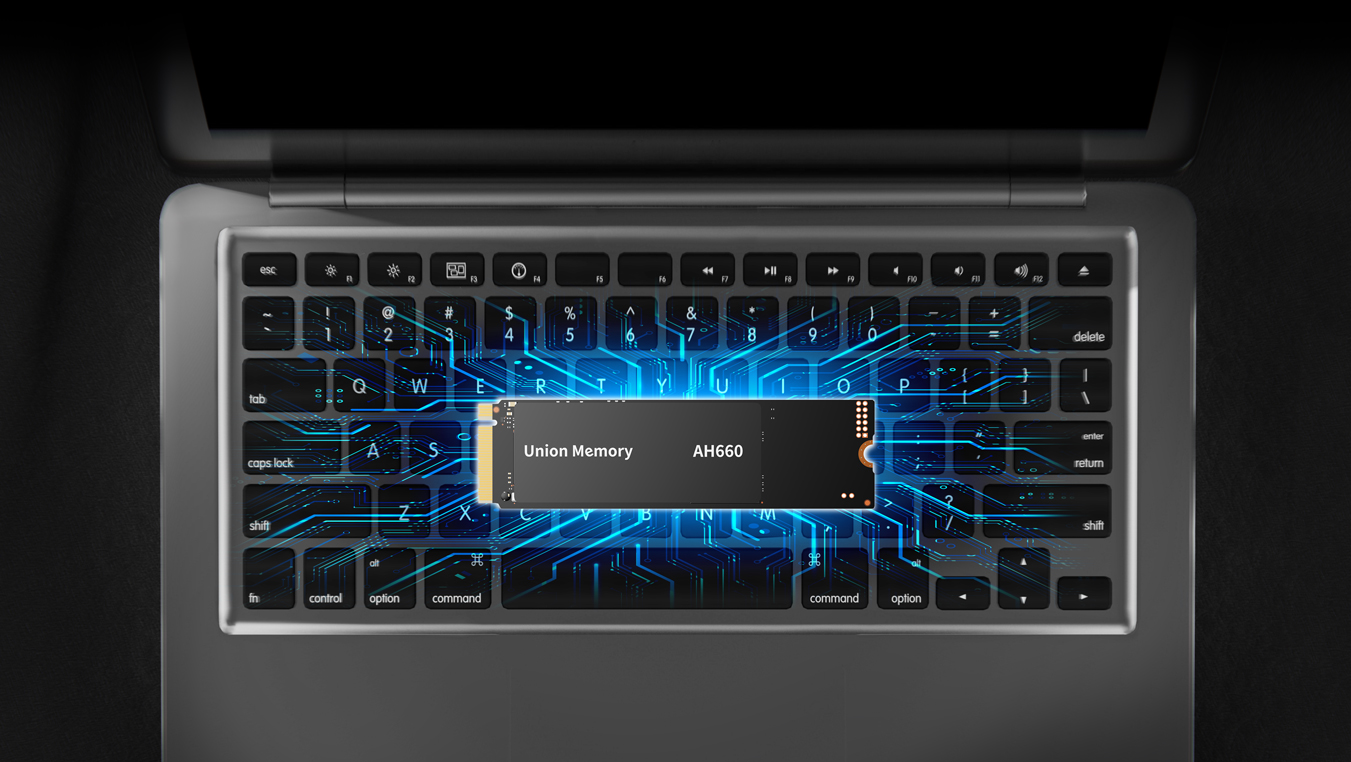

Support L1.2 low-power mode with power consumption less than 5mW, significantly extending endpoint device battery life
|
Model |
AH660 |
|
|
Form factor |
M.2 2280-S3-M |
|
|
Capacity |
512GB |
1TB |
|
Sequential read |
7100MB/s |
7100MB/s |
|
Sequential write |
4400MB/s |
5500MB/s |
|
Random read IOPS (4KB) |
820K |
850K |
|
Random write IOPS (4KB) |
680K |
700K |
|
TLC sequential write |
890MB/s |
1850MB/s |
|
TLC random write IOPS (4KB) |
235K |
355K |
|
Dimensions |
80±0.15mm (L) × 22±0.15mm (W) × 2.38mm (H, max.) |
|
|
Weight |
Max. 8g |
|
|
Power consumption |
L1.2: < 5 mW Idle: < 60 mW Active: < 180 mW |
|
|
Bus interface |
PCIe Gen 4*4 |
|
|
NVMe standard |
NVMe 1.4 |
|
|
Temperature |
Operating: 0°C to 70°C |
|
|
Humidity |
5% to 95%, non-condensing |
|
|
MTBF |
2 million hours |
|
|
Shock |
Operating: Half-sine, 1,000G @ 1ms, 6 directions |
|
|
Vibration |
Operating: Random, 5Grms, 2~2,000Hz, 3 axes |
|
|
Supply voltage |
3.3V±5% |
|
|
Ripple / Noise |
≤100mV |
|
