Next-gen Jaguar6020 controller
SoC with high-capacity SRAM and I/O acceleration module to provide exceptional performance
Gen3 firmware architecture that ensures high reliability, stability, and compatibility

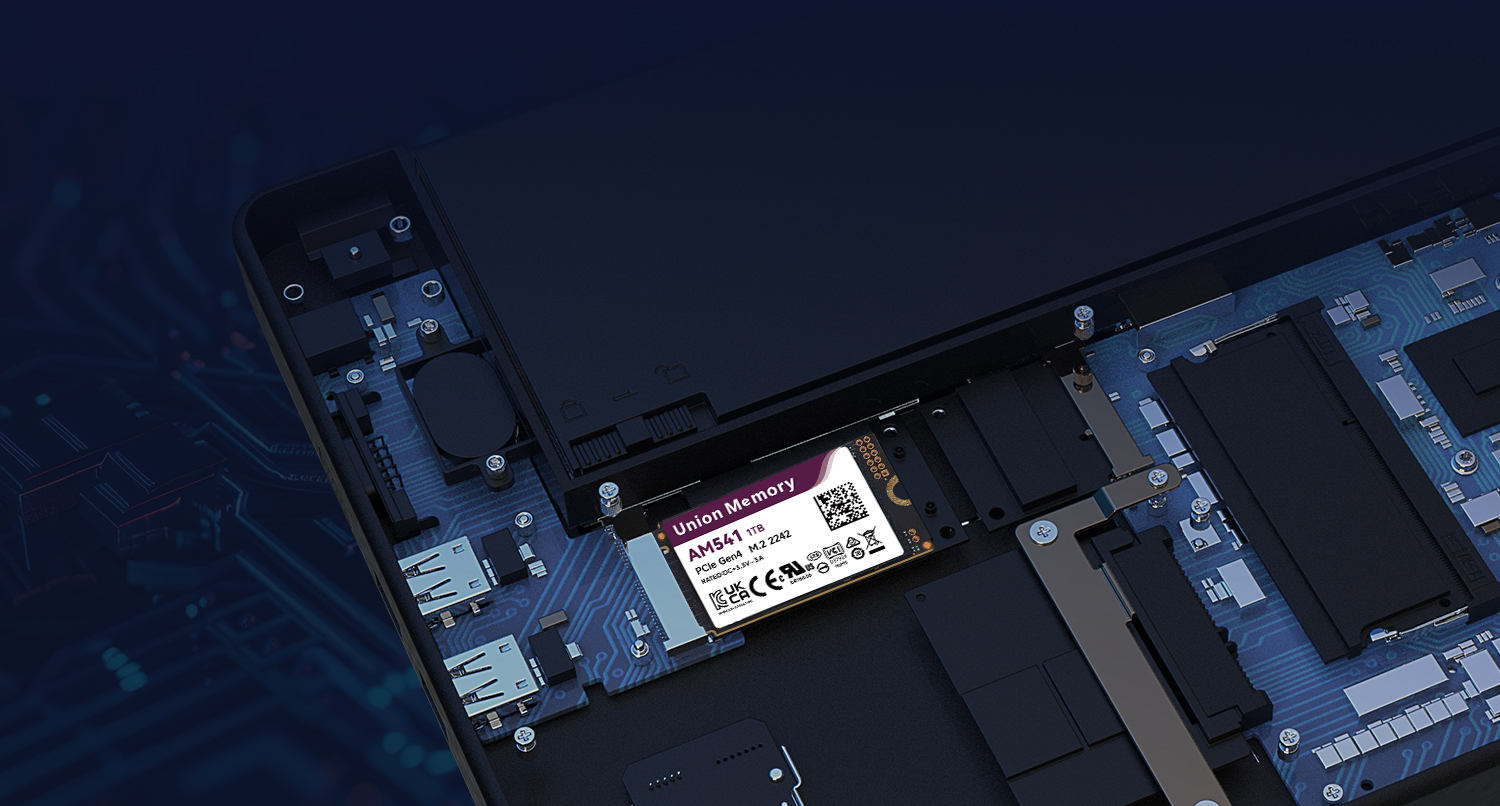

Fully compatible with AI PCs, effortlessly handling multi-application scenarios such as office, entertainment, and more

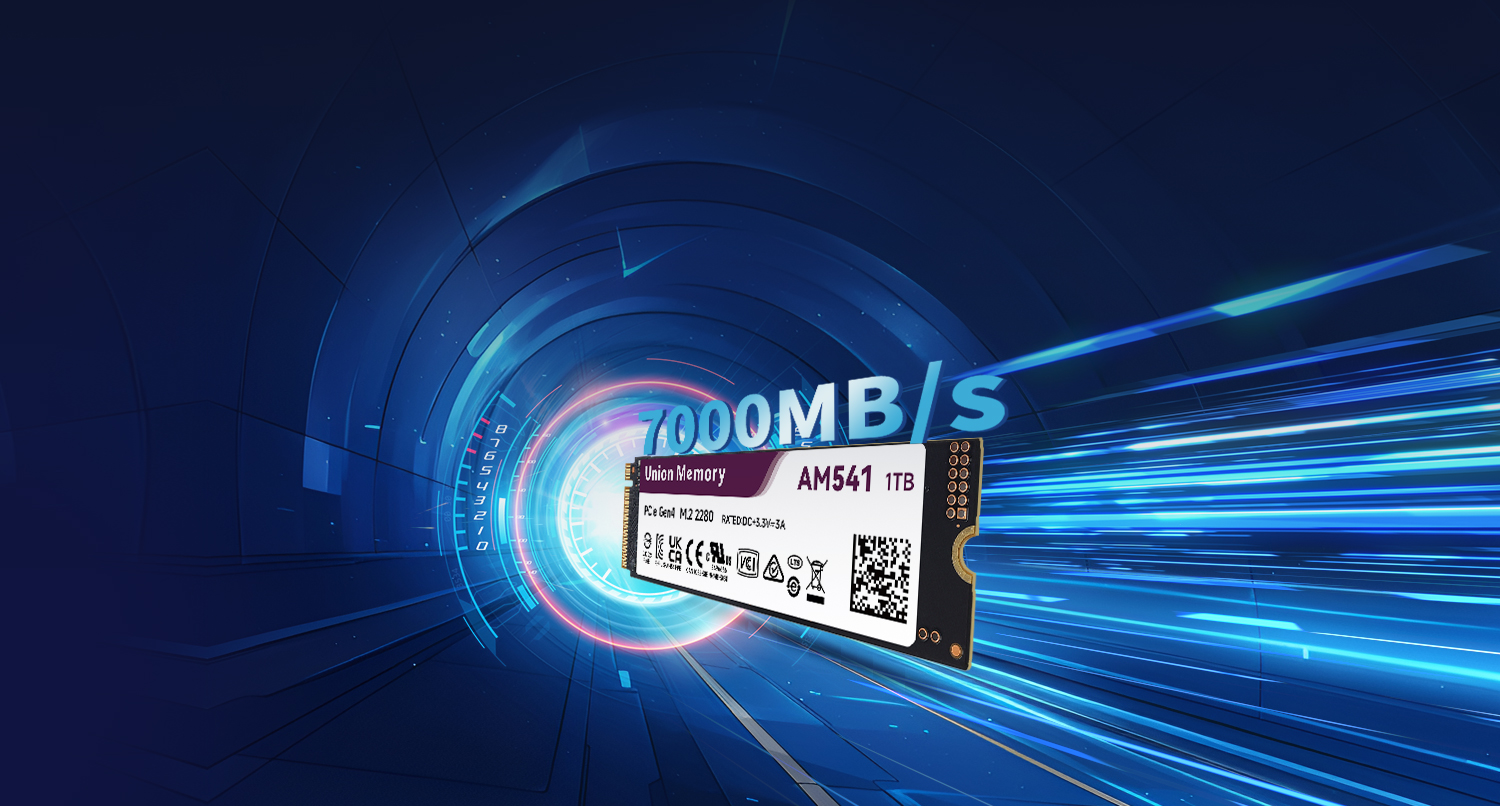

Up to 7,000/5,600 MB/s sequential read/write
Industry-leading performance delivers a smooth user experience
Built on the Gen3 firmware architecture, offering outstanding stability and compatibility
Consistent, stable performance across office, entertainment, and other scenarios
AM541 has undergone rigorous certification testing and end-user validation, supported by comprehensive end-to-end quality monitoring and process control
MTBF exceeding 2 million hours.
Model |
AM541 |
|||||
Form factor |
M. 2 2242-S3-M |
M.2 2280-S3 M |
||||
Capacity |
256GB |
512GB |
1TB |
256GB |
512GB |
1TB |
Sequential read |
6800MB/s |
7000MB/s |
7000MB/s |
6800MB/s |
7000MB/s |
7000MB/s |
Sequential write |
3500MB/s |
5600MB/s |
5600MB/s |
3500MB/s |
5600MB/s |
5600MB/s |
Random read IOPS (4KB) |
500K |
750K |
800K |
500K |
750K |
800K |
Random write IOPS (4KB) |
800K |
800K |
800K |
800K |
800K |
800K |
Dimensions |
42±0.15mm (L) × 22±0.15mm (W) × 2.38mm (H, max.) |
80±0.15mm (L) × 22±0.15mm (W) × 2.38mm (H, max.) |
||||
Weight |
Max.3.8g |
Max.6.2g |
||||
Power consumption |
L1.2: < 5 mW, Idle: < 50 mW, Active: < 100 mW |
|||||
Bus interface |
PCIe Gen4 ×4 |
|||||
NVMe standard |
NVMe 1.4 |
|||||
Temperature |
Operating: 0℃ to 70℃ |
|||||
Humidity |
5% to 95%, non-condensing |
|||||
MTBF |
2 million hours |
|||||
Shock |
Operating: Half-sine, 1,000G @ 1ms, 6 directions |
|||||
Vibration |
Operating: Random, 5Grms, 10~2000Hz, 3 axes |
|||||
Supply voltage |
3.3V±5% |
|||||
Ripple / Noise |
≤100mV |
|||||
