Outstanding performance with random read speeds exceeding 1,000K IOPS
Multiple capacity options, up to 2TB
Support Unbalance Die feature and multiple optimization mechanisms for higher reliability
Excellent thermal performance and energy efficiency, with L1.2 power consumption as low as 2.9mW

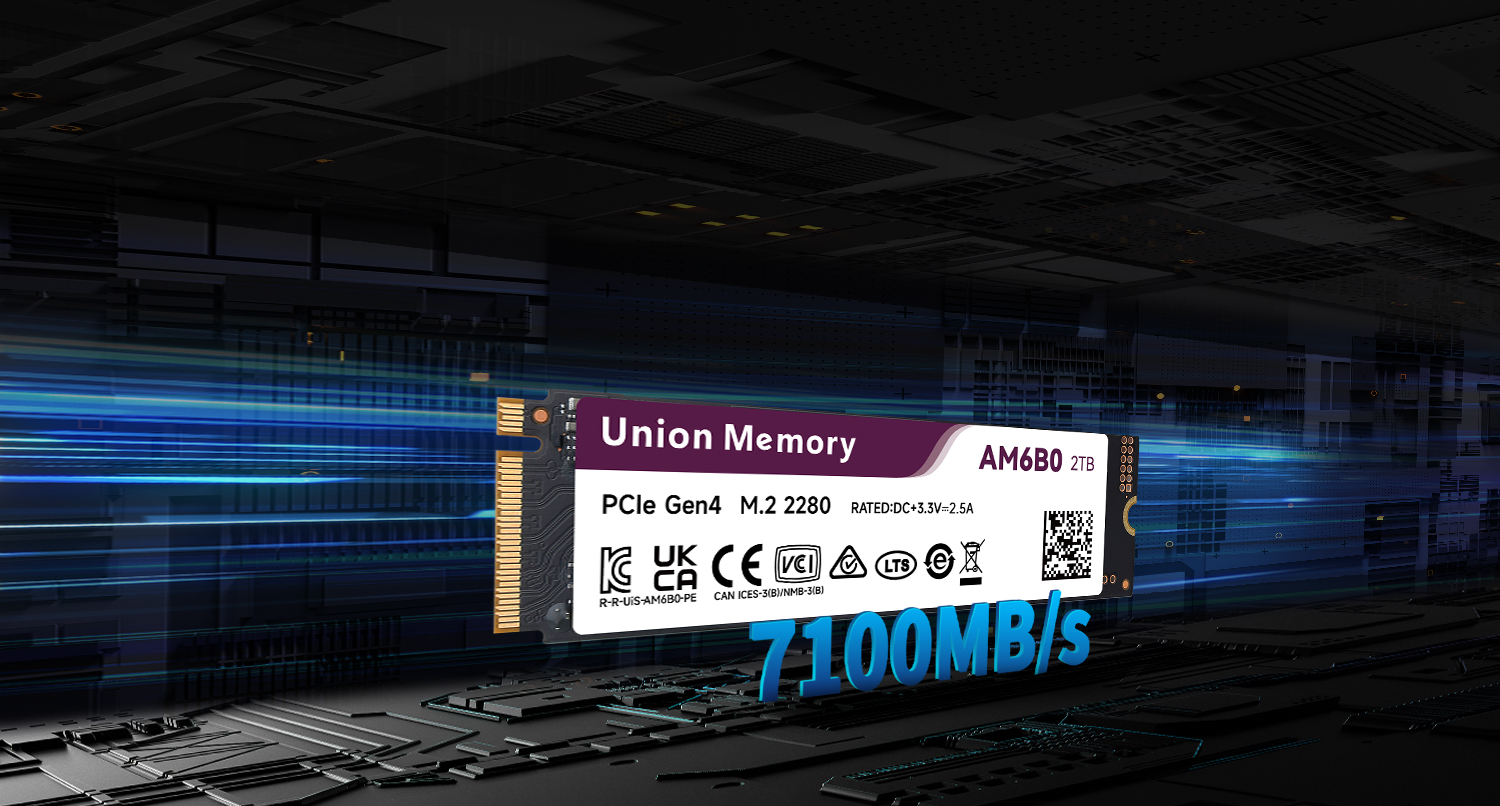

Up to 7,100/6,400 MB/s sequential read/write and 1,000K/950K IOPS random read/write
Deliver an ultra-smooth data storage experience

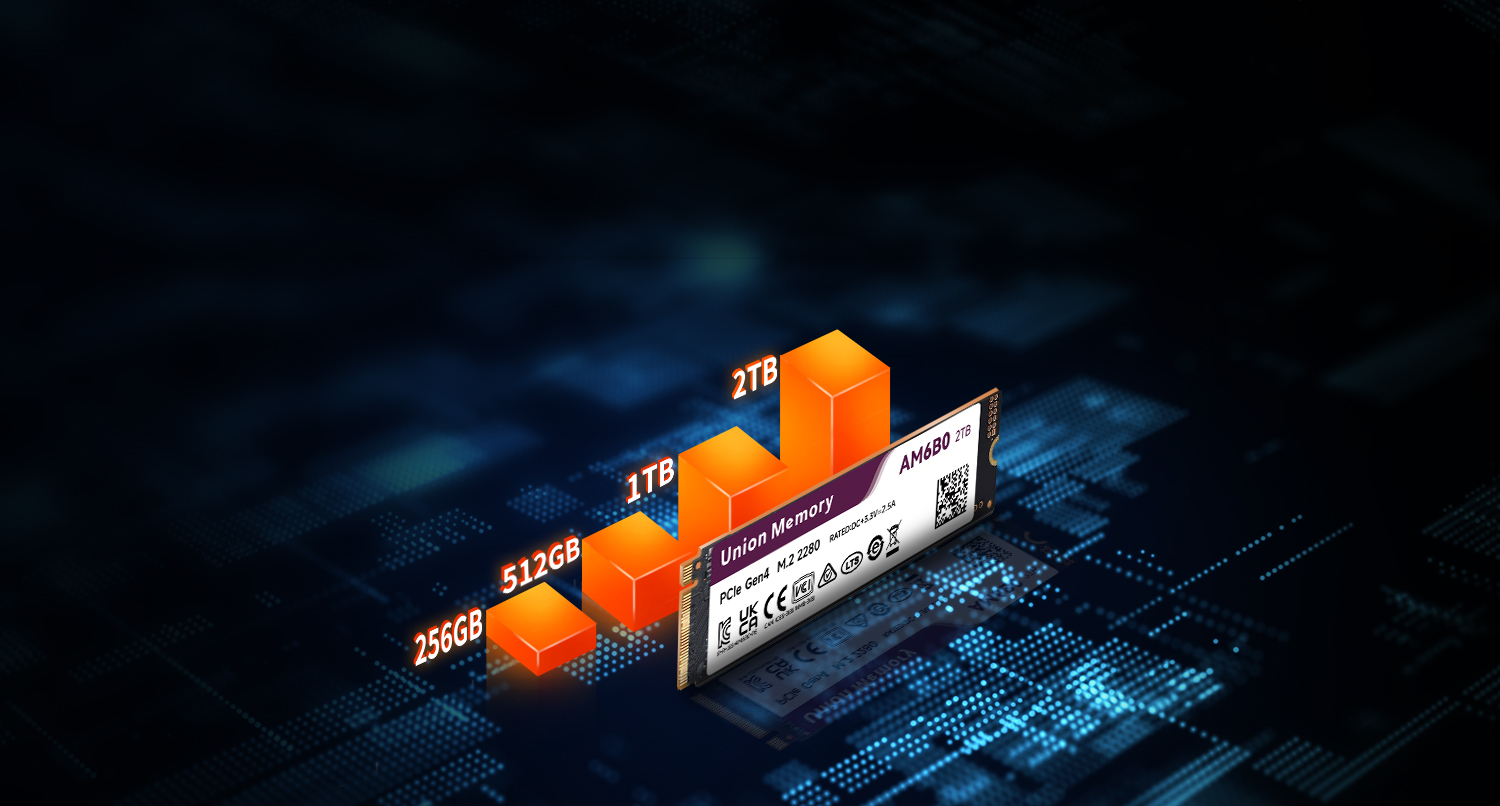

Available in 256GB, 512GB, 1TB, and 2TB capacities
Meet diverse storage capacity needs of different users, enabling fast import and backup of large files

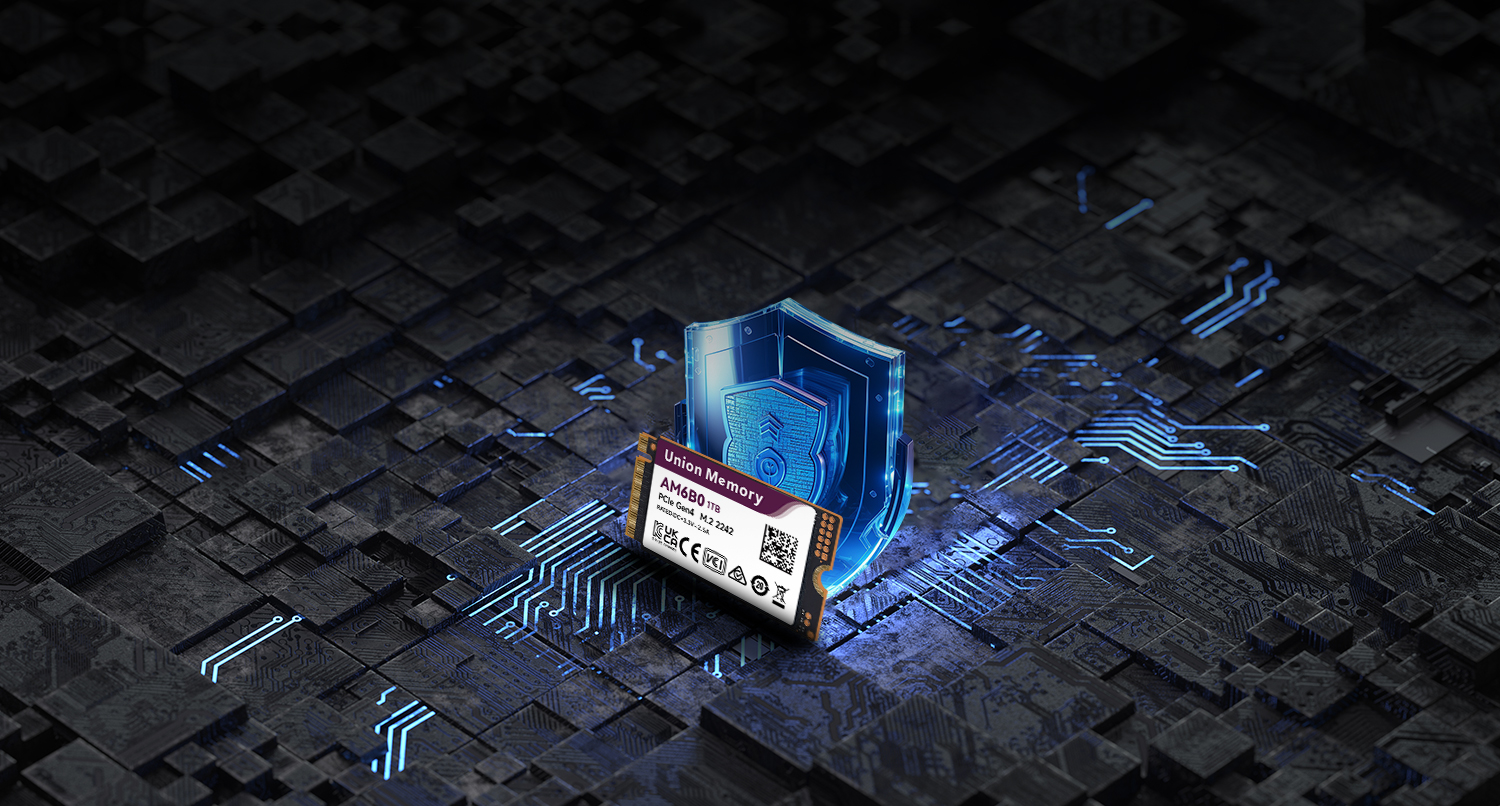

Support Unbalance Die feature and optimization mechanisms including WL Group Retry and retry table
Higher system reliability for worry-free usage
DRAM-less design with PMIC support balances performance and power consumption for superior energy efficiency
Longer device runtime with less frequent recharging
Model |
AM6B0 |
|||||||

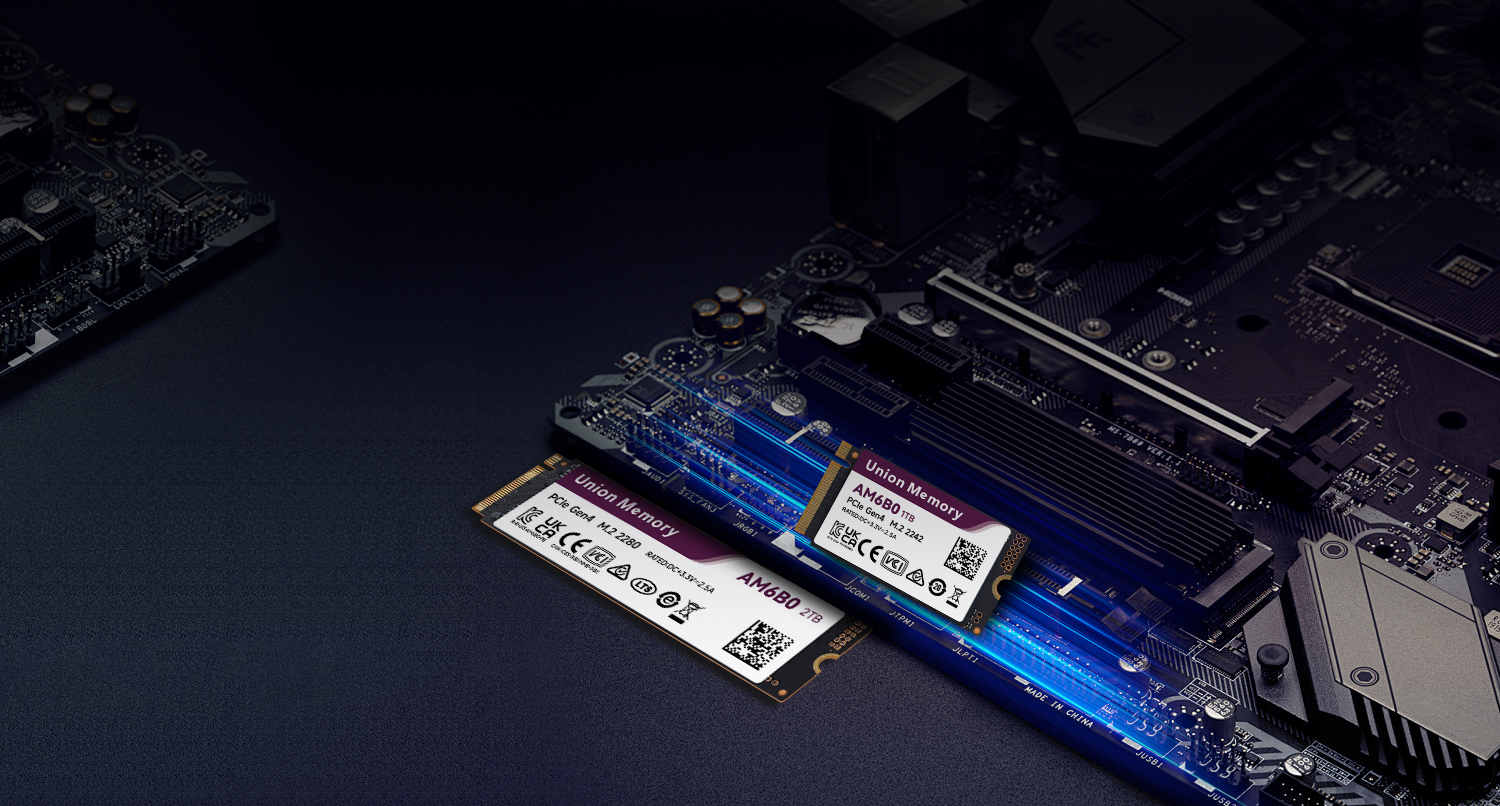

Form factor |
M.2 2242-S3-M |
M.2 2280-S3-M |
||||||
Capacity |
256GB |
512GB |
1TB |
2TB |
256GB |
512GB |
1TB |
2TB |
Sequential read |
6800MB/s |
6900MB/s |
7100MB/s |
7100MB/s |
6800MB/s |
6900MB/s |
7100MB/s |
7100MB/s |
Sequential write |
4600MB/s |
5700MB/s |
6400MB/s |
6400MB/s |
4600MB/s |
5700MB/s |
6400MB/s |
6400MB/s |
Random read IOPS (4KB) |
530K |
650K |
1000K |
1000K |
530K |
650K |
1000K |
1000K |
Random write IOPS (4KB) |
840K |
900K |
940K |
950K |
840K |
900K |
940K |
950K |
Dimensions |
42±0.1mm (L) × 22±0.1mm (W) × 2.38mm (H, max.) |
80±0.1mm (L) × 22±0.1mm (W) × 2.38mm (H, max.) |
||||||
Weight |
Max.3.5g |
Max.6.0g |
||||||
Power consumption |
L1.2: < 5 mW, Idle: < 50 mW, Active: < 150 mW |
|||||||
Bus interface |
PCIe Gen4 ×4 |
|||||||
NVMe standard |
NVMe 1.4 |
|||||||
Temperature |
Operating: 0℃ to 70℃ |
|||||||
Humidity |
5% to 95%, non-condensing |
|||||||
MTBF |
2 million hours |
|||||||
Shock |
Operating: Half-sine, 1,000G @ 1ms, 6 directions |
|||||||
Vibration |
Operating: Random, 5Grms, 2~2,000Hz, 3 axes |
|||||||
Supply voltage |
3.3V±5% |
|||||||
Ripple / Noise |
≤100mV |
|||||||
