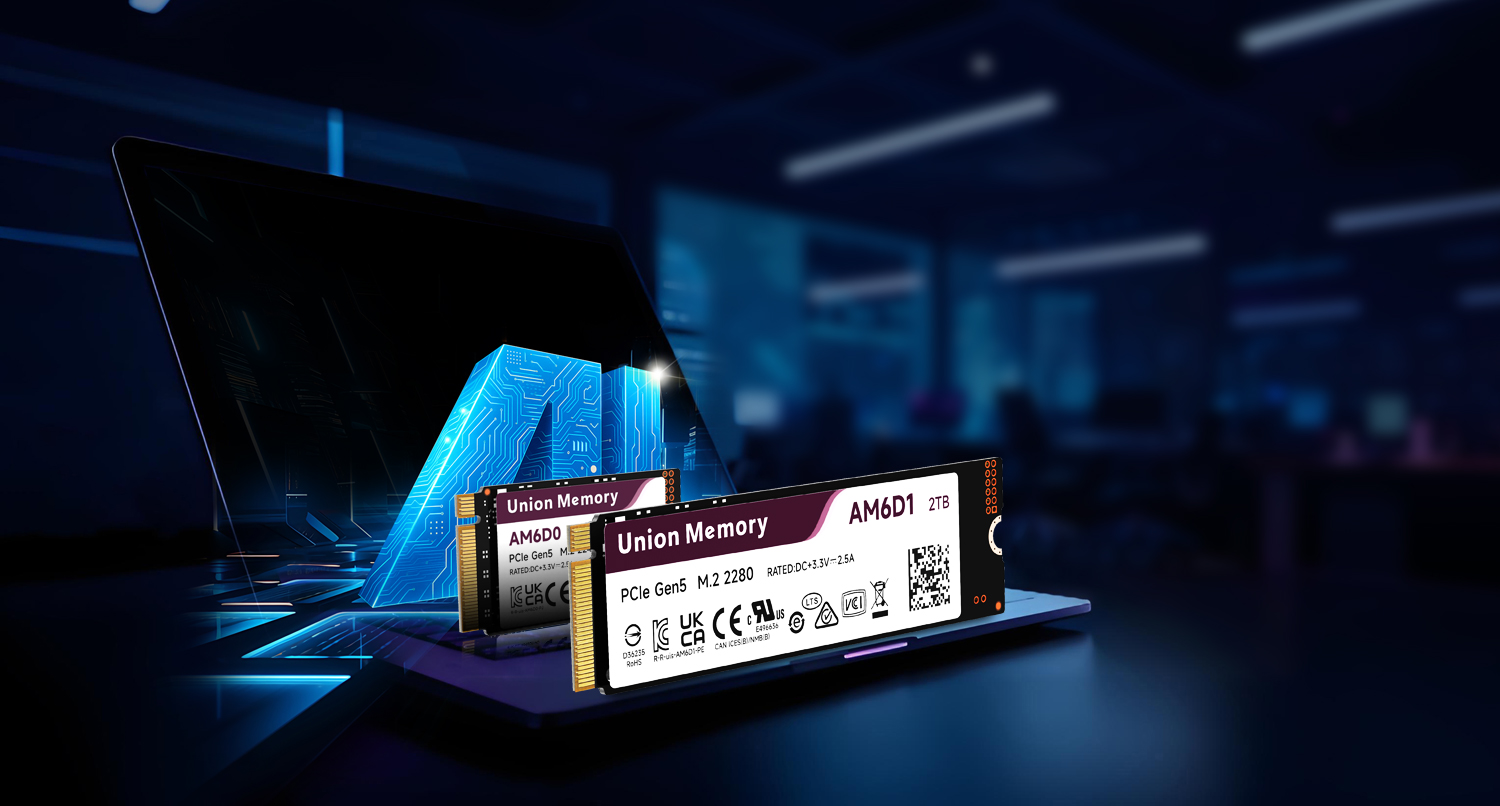

AM6D1/AM6D0 Highlights

Next-gen PCIe 5.0 high-speed interface enables a comprehensive performance leap
Sequential read/write up to 11,400/10,900 MB/s and 4KB random read/write up to 1,700K/1,150K IOPS
Fully compatible with leading OEM hardware and software standards
Easily handles high-load scenarios including large game loading, real-time 8K video editing, and AI computing

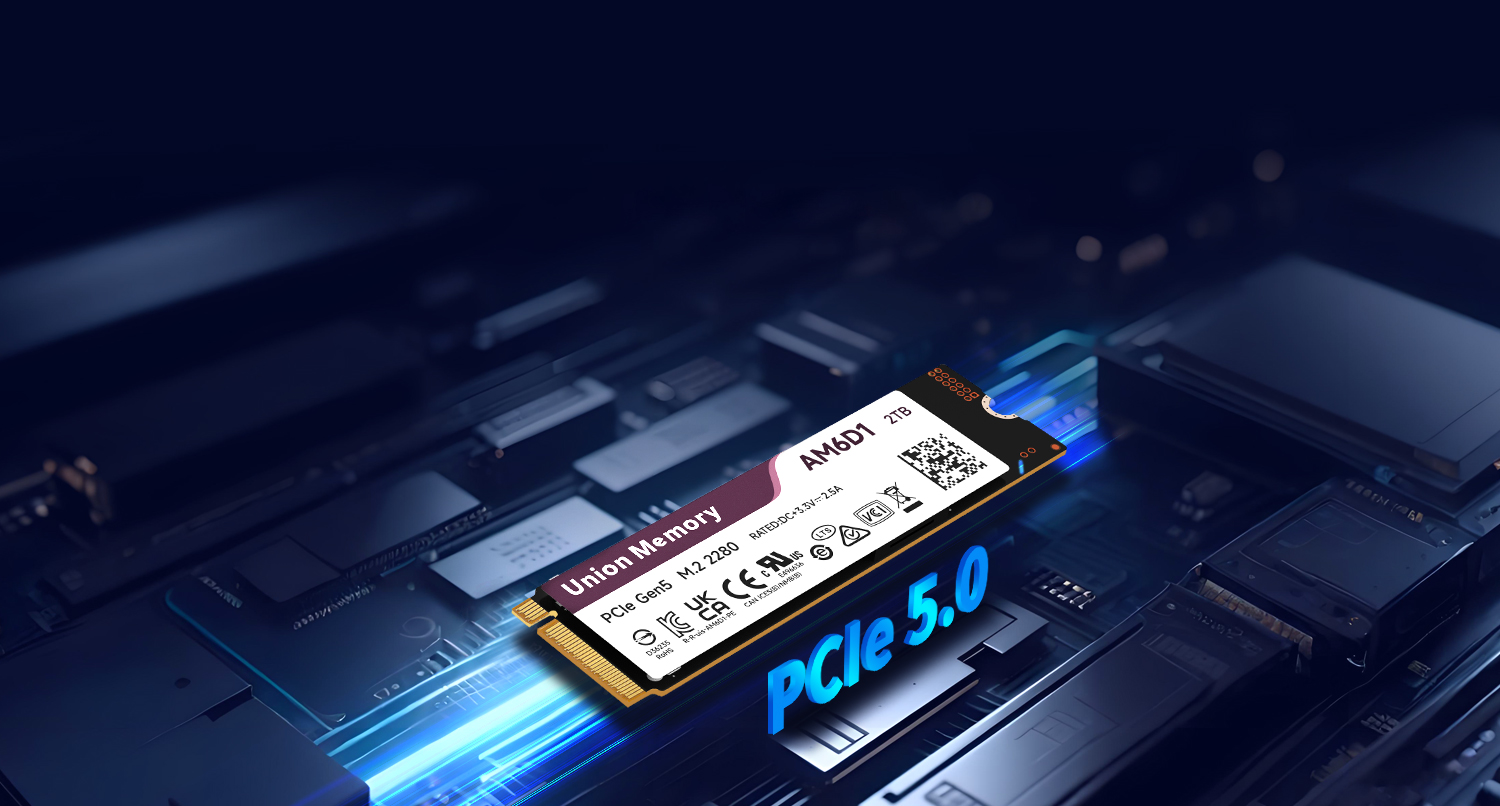

Superior Performance

PCIe 5.0 delivers 50% performance uplift over PCIe 4.0
Support static/dynamic SLC write cache, handling sudden burst writes with ease

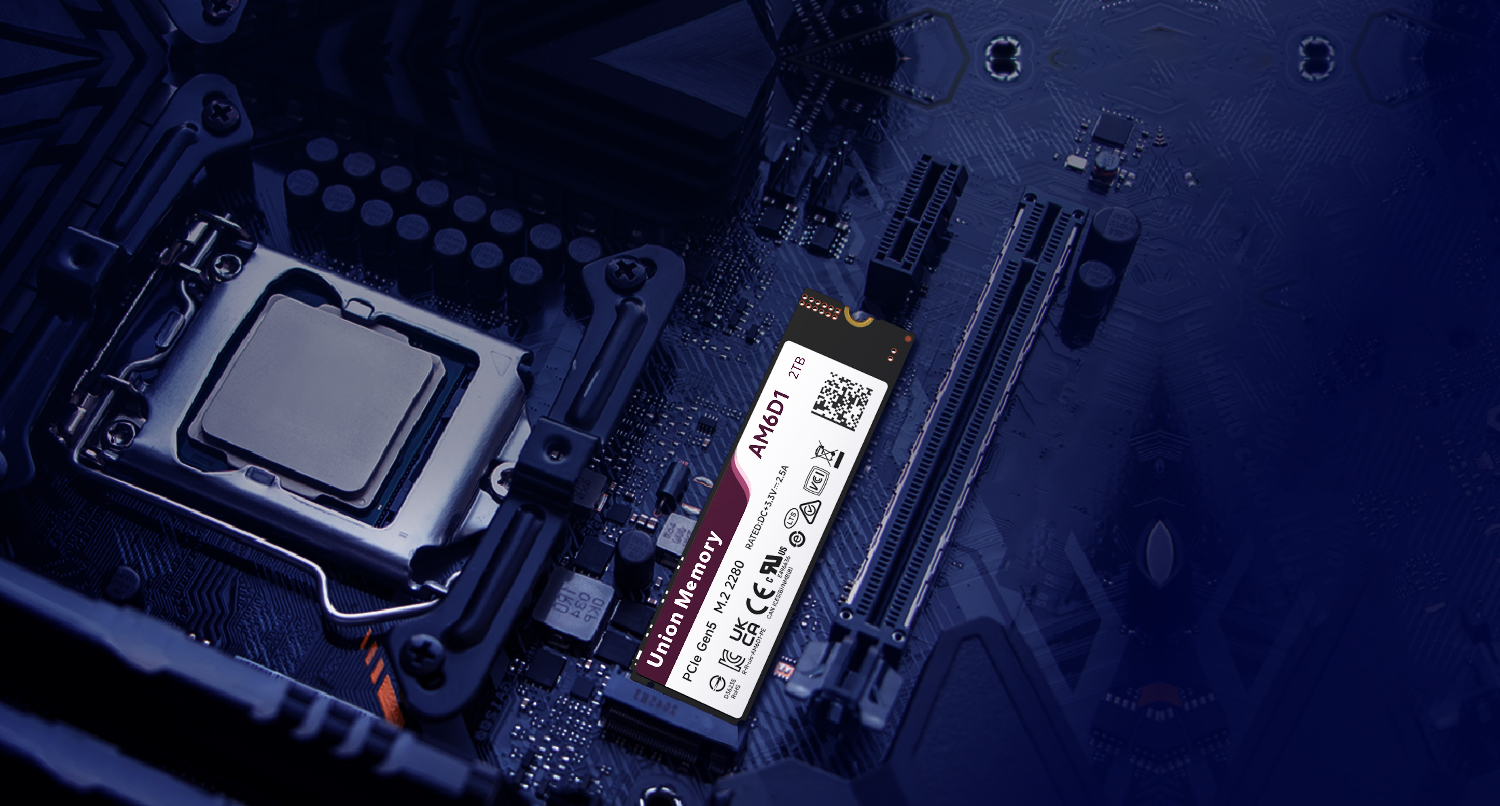

Stable & Reliable

Support end-to-end data protection and SRAM/CPU ECC multiple error correction mechanisms to ensure comprehensive data security
Sustained, stable high performance with performance variance <5% under high loads — rock-solid reliability without stuttering

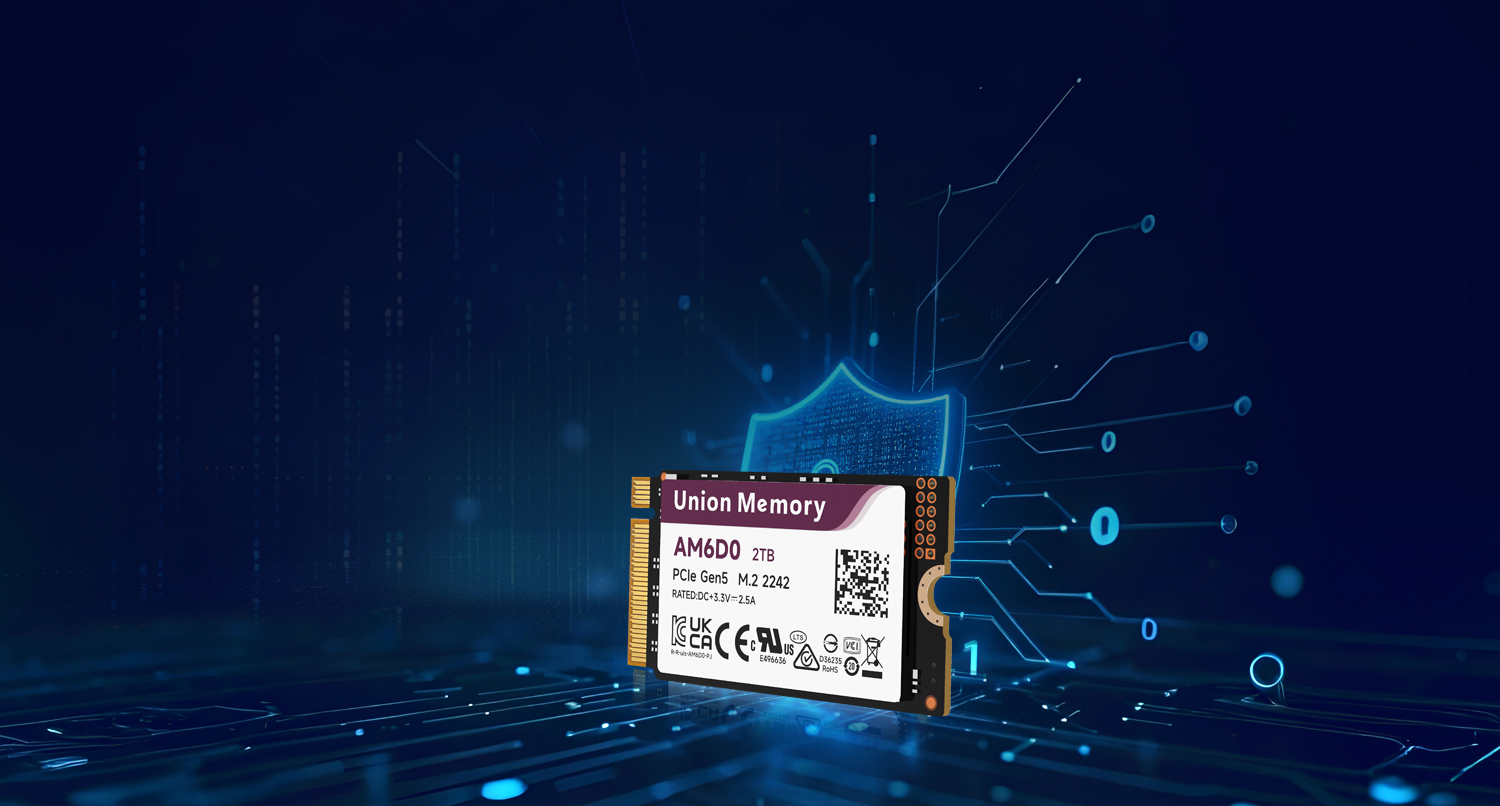

Optimized TCO

High-integration DRAM-less architecture with reduced number of crystal oscillators and DCDC modules for cost optimization
Multiple power-saving technologies including LTR, D3hot, and D3cold with superior energy efficiency
Support L1.2 low-power mode with power consumption as low as 3mW

Specifications

Model	AM6D1			AM6D0
Capacity	512GB	1TB	2TB	512GB	1TB	2TB
Sequential read	10700MB/	10700MB /s	11400MB /s	10200MB/s	11300MB/s	11300MB/s
Sequential write	8700MB/s	10600MB/s	10900MB/s	6600MB/s	10300MB/s	10600MB/s
Random read IOPS (4KB)	850K	1500K	1600K	700K	1400K	1700K
Random write IOPS (4KB)	1100K	1150K	1150K	1100K	1100K	1100K
Form factor	M.2 2242/M.2 2280
Dimensions	M.2 2242: 42±0.15mm (L) × 22±0.15mm (W) × 2.38mm (H, max.) M.2 2280: 80±0.15mm (L) × 22±0.15mm (W) × 2.38mm (H, max.)
Weight	M.2 2242: Max. 3.8g M.2 2280: Max. 6.5g
Power consumption	L1.2: < 5 mW, Idle: < 50 mW, Active: < 150 mW
Bus interface	PCIe Gen5 ×4
NVMe standard	NVMe 2.0
Temperature	Operating: 0℃ to 70℃ Non-operating: -40°C to 85°C
Humidity	5% to 95%, non-condensing
MTBF	2 million hours
Shock	Operating: Half-sine, 1,000G @ 1ms, 6 directions Non-operating: Half-sine, 1,500G @ 0.5ms, 6 directions
Vibration	Operating: Random, 5Grms, 2~2,000Hz, 3 axes Non-operating: Random, 7Grms, 2~500Hz, 3 axes
Supply voltage	3.3V±5%
Ripple / Noise	≤100mV
